Photogrammetry with DJI Mavic 3 – Orbital Scanning

With no SDK available – manual Orbital Scanning techniques can be crucial if you want to utilize your Mavic 3 camera for photogrammetry. In the previous article, we discussed using currently available functions for nadir scanning. Now we are going to take a look at semi-automatic orbital scanning capabilities.

Orbital Scanning

Orbital scans are best for isolated, small to medium-sized objects. In our case, we chose a church roof with some facade detail captured too. The church is round, which makes it unusual and perfect for our testing purposes.

Few orbital scan examples. You can also check our blog post about roof inspection.

POI Mode for Orbital Scanning

POI mode has been around for a while in DJI drones. The approach used to be different, though. The point of interest was set in the previous versions using the drone’s GPS location by hovering over a spot and designating that spot as the POI. With the Mavic 3, we use the Active Track function as a base for POI flying.

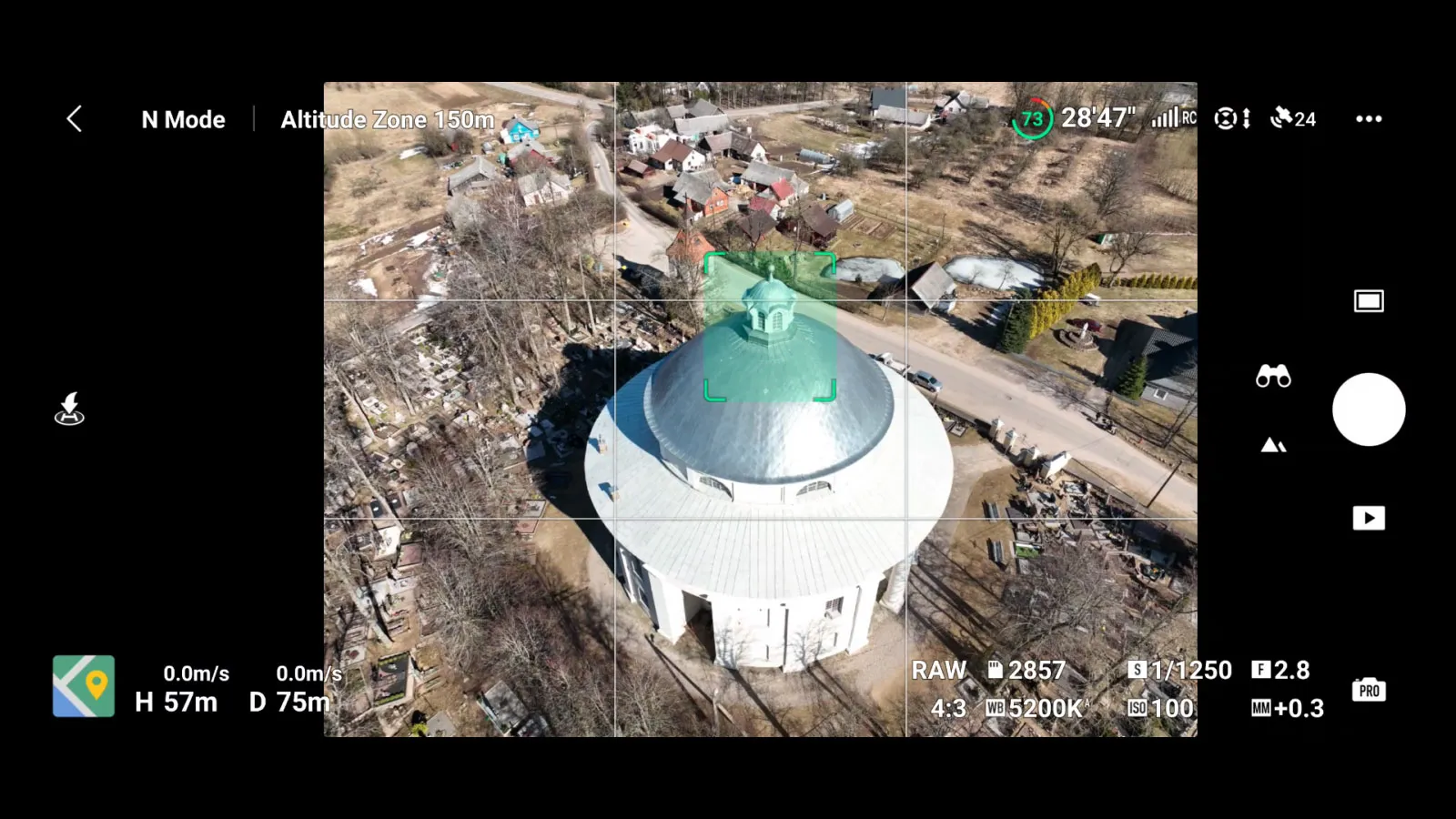

First, we take off, fly and frame our subject, so it takes a large portion of our field of view, with the center part of the subject clearly visible. In our case, the center part is the steeple in the middle of the roof. We select the steeple by drawing a rectangle on the screen to engage active tracking. The app may recompose the shot, and three tracking modes appear on the bottom part of the screen. We choose the POI mode.

No Rush With in the POI Mode

Tap on the GO button, and the Mavic will start flying in the POI mode. Ensure that the circular trajectory will be free of obstacles and safe to fly. As the initial speed is always slow, you can evaluate the safety while flying in the POV mode. The obstacle avoidance is working, and you can increase the drone altitude at any time. During this mode, the remote controller sticks are operating as usual. If you move your camera up or down, the tracking mode will change to a designated spot tracking, it is fine, and we can proceed with image capture.

Software Cripples from DJI Continued

Now we check our exposure and photo format settings. We try to expose so that the shadow areas are still visible and the bright regions are not entirely white. We chose to shoot in raw for maximum quality. At this point, I would recommend using the time shooting mode. But to my complete surprise, timed shooting is not available in the tracking modes. This is another artificially imposed software limitation that boggles the mind and makes the whole process more difficult than it should be. Older DJI drones such as Mavic 2 Pro do not have this limitation.

Processed raw vs not processed image

Capturing Images Manually

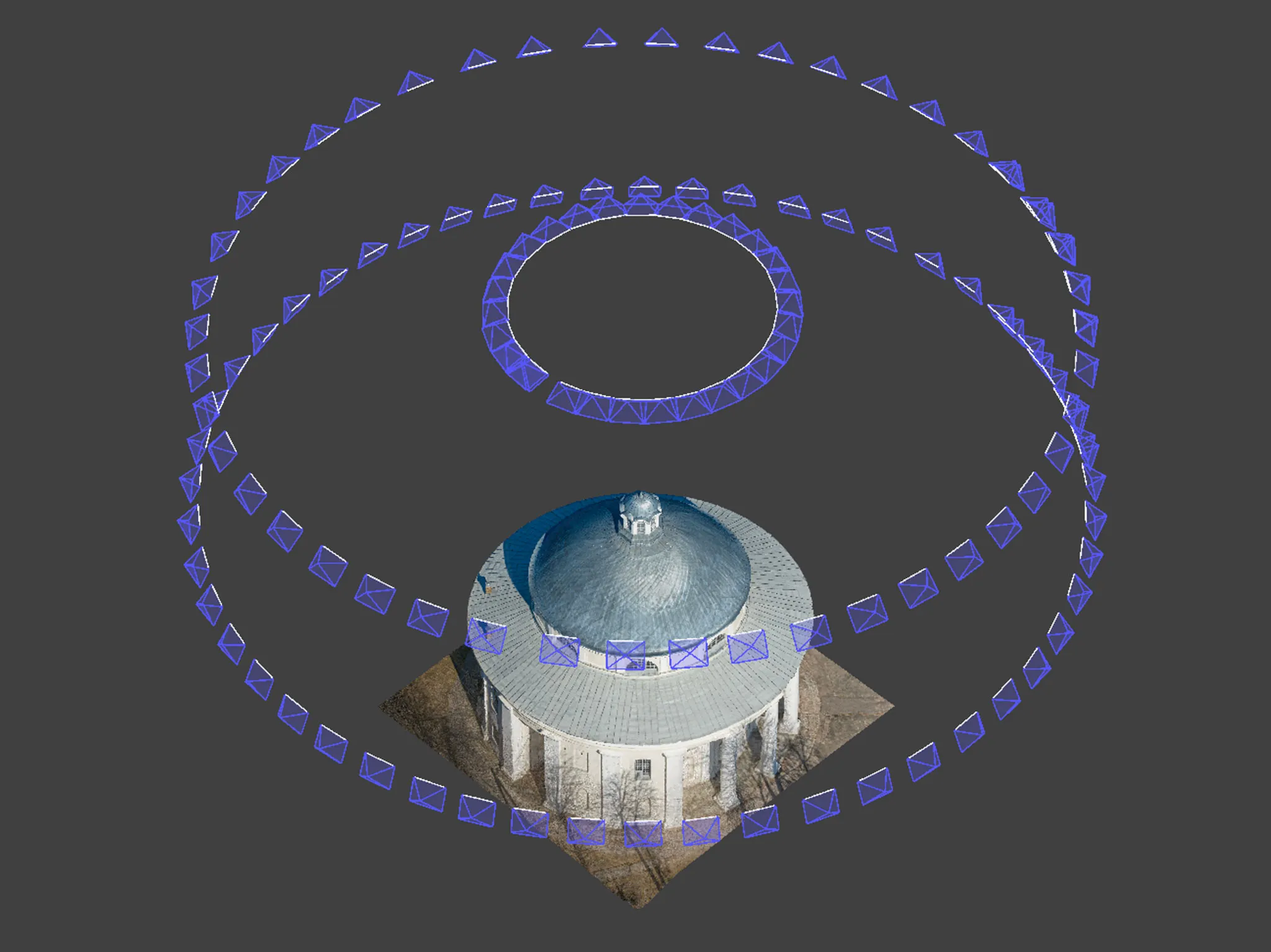

Multiple Orbits in Orbital Scanning

For a quick scan of the roof, a single orbit is enough. We can always add more orbits if we want to make a more detailed scan with more coverage. Once we finished capturing the images of the first orbit, the drone continued to circle around our subject. Using the remote controller sticks, we can adjust the altitude and the radius of the orbits. We can go lower to increase the facade coverage or go higher and closer to get more details on the steeple and the roof. Also, we can go closer to our subject to increase the overall quality. Make sure your trajectory is safe

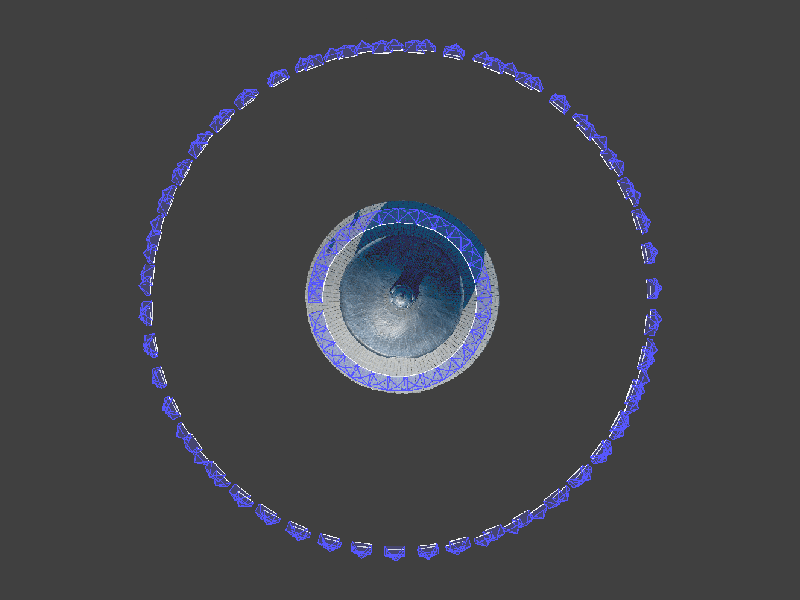

Camera positions preview in Pixpro software

Filtering and Processing Photos

With the fieldwork done, it is time to process the images. We shot raw, so we will be converting raw images to jpeg using Adobe Lightroom Classic. After the conversion, we make sure that there are no irrelevant or identical images in our set. This can be done in the Pixpro software using the photo manager. Orbital sets are generally easy to reconstruct and provide good single object reconstruction. All done with the basic DJI Fly app.
